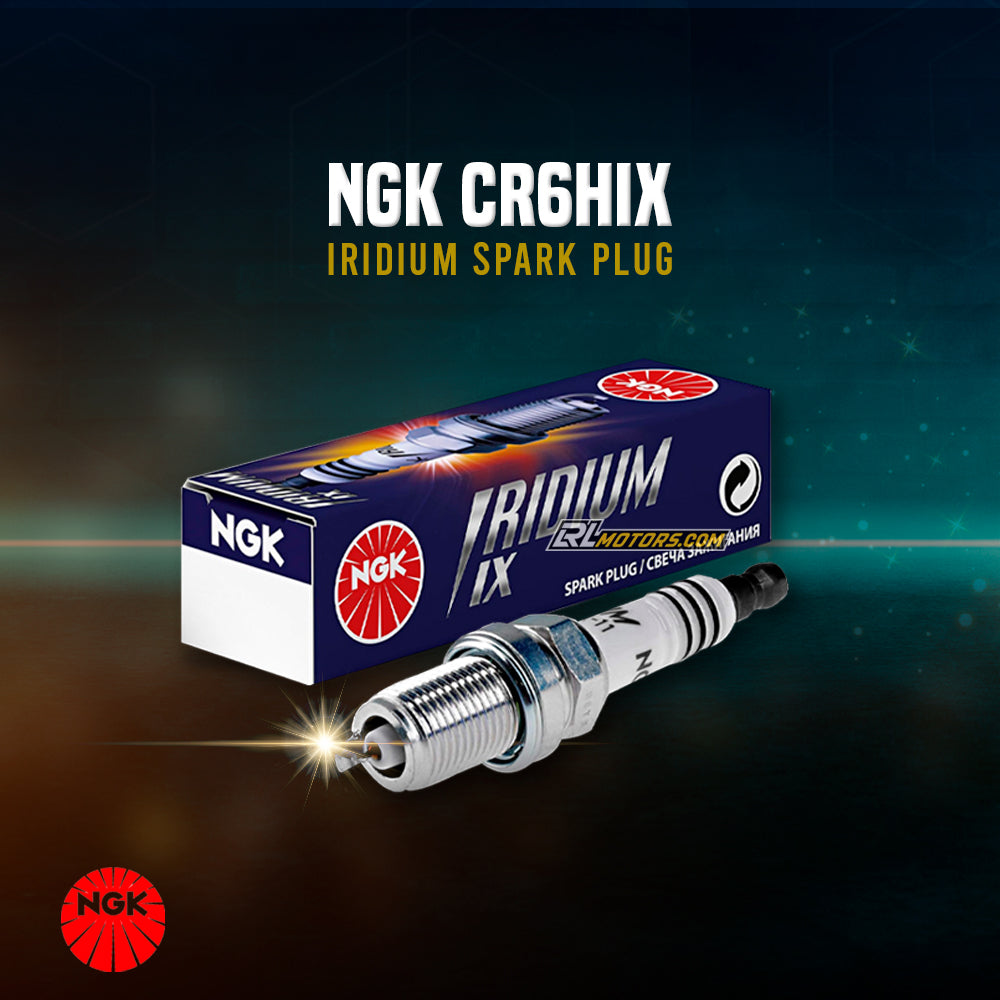

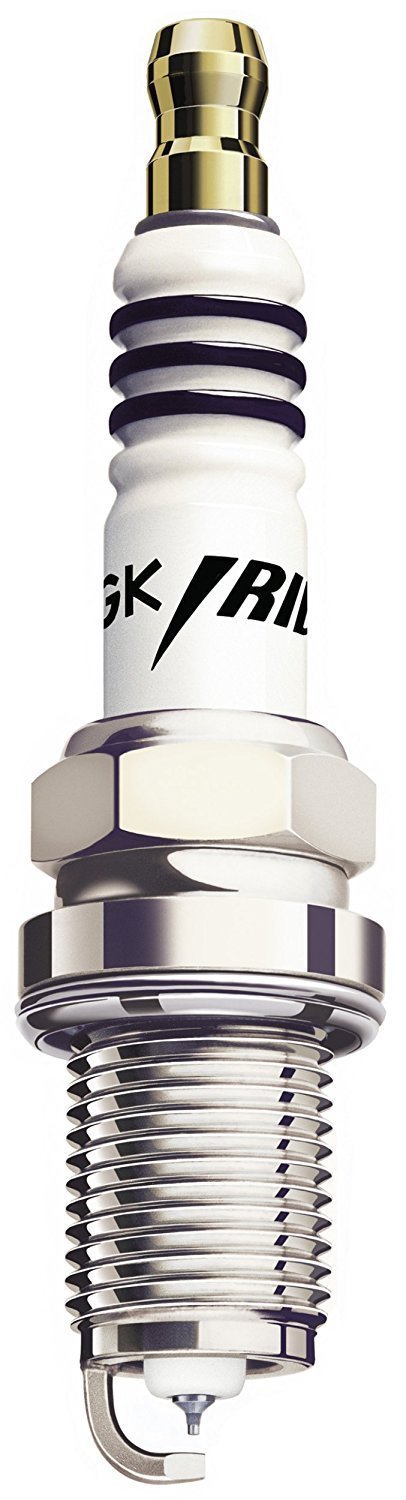

The NGK CR6HIX Iridium Spark Plug is a high-performance spark plug that is suitable for use in a wide range of small engines, including those found in motorcycles, ATVs, and other powersports vehicles. It features a fine-wire iridium center electrode and a tapered cut ground electrode that work together to deliver a more complete and efficient combustion process. The result is improved acceleration, better fuel efficiency, and reduced emissions. This spark plug is designed to be a direct replacement for the OEM spark plug in many popular powersports vehicles.

Shell

• Thread Size: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 12.7mm (1/2")
• Hex Size: 5/8" (16mm)
• Terminal Type: Threaded Stud
• Overall Height: ISO
• Gap: .028" (0.7mm)

Center Electrode

• Material: Iridium
• Type: Fine Wire
• Size: 0.6mm
• Projection: Non-Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Shape: Taper Cut
• Quantity: 1

Specifications

• Warranty: 1 Year
• Torque Specs: Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.
• Brand: NGK
• Heat Range: 6
• Longevity: 50k Miles
• Resistor: Yes
