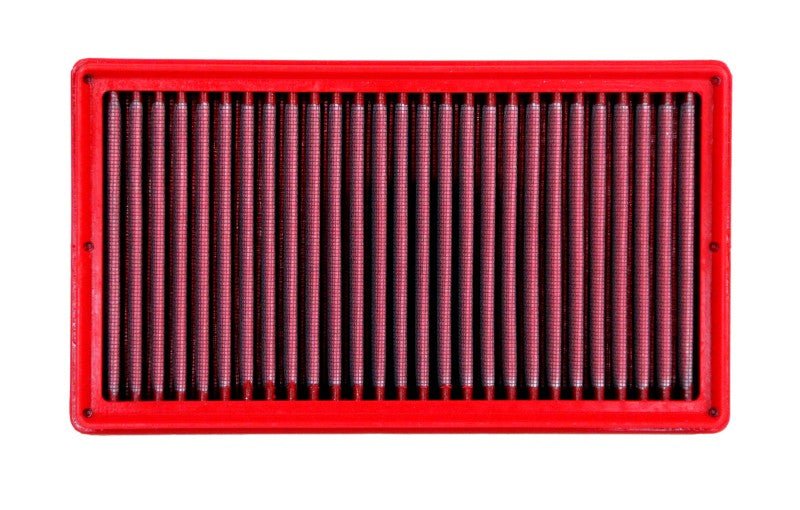

BMC Air Filter FB01011/01

The panel air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.

Technical features

Outside Width/Base Inner Diameter (mm)	152
Outside Length/Base Outside Diameter (mm)	268



Filter Material : Oiled Cotton Gauze

Washable : Yes
Warranty : 2 Years Limited
EAN : 8055732593803

Product Box Width (mm) : 228

Product Box Length (mm) : 298
Product Box Height (mm) : 34
Gross Weight (Kg) : 0.4
Package Quantity : 1
Package Contents : 1 Air Filter

FIAT

Model	HP	Chassis	Year	Engine
TIPO / AEGEA (356) 1	101	-	2020 >
500X 1.0 GSE	120	-	2018 >
500X 1	114	-	2018 >

LEXUS

Model	HP	Chassis	Year	Engine
ES (_Z10_) 300H	178	AXZH10	2018 >	A25A-FXS
ES (_Z10_) 300H Hybrid	218	AXZH10	2018 >	A25A-FXS
NX II 350h	190	-	2021 >	A25A-FXS
NX II 350h	243	-	2021 >	A25A-FXS
NX II 450h + E-Four	185	-	2021 >	A25A-FXS
NX II 450h + E-Four	309	-	2021 >	A25A-FXS
RX 350h E-FOUR	245	AALH15	2022 >	A25A-FXS
RX 450h+ E-FOUR	306	AALH15	2022 >	A25A-FXS
UX 200 (MZAA10)	150	MZAA10	2018 >	M20A-FKS

TOYOTA

Model	HP	Chassis	Year	Engine
ALLION III 2	147	-	2021 >	M20
AVALON 2.5	209	-	2018 >
CAMRY VIII 2.5 Hybrid	218	XV70	2017 >	A25A-FXS
CH-R 1.2	116	NGX10,50	2016 >	8NR-FTS
CH-R 1.2	131	NGX10,50	2018 >	8NR-FTS
CH-R 2	148	ZGX10	2016 >	3ZR-FAE
COROLLA (E210) 1.2	116	E210	2019 >	8NRFTS
COROLLA (E210) 1.6 VVTi	122	E210	2019 >	1ZR-FE
COROLLA (E210) 1.6 VVTi	132	E210	2019 >	1ZR-FAE
MIRAI 2	155	-	2015 >	JPD10
RAV4 V 2.5 Hybrid	185	-	2020 >	A25A-FXS
RAV4 V 2.5 Hybrid	218	-	2018 >	A25A-FXS
RAV4 V 2.5 Hybrid AWD INNOVA HYCROSS GX 8 seater non-hybrid (naturally aspired petrol) 2.0	222 184	- -	2018 > 2023	A25A-FXS -
